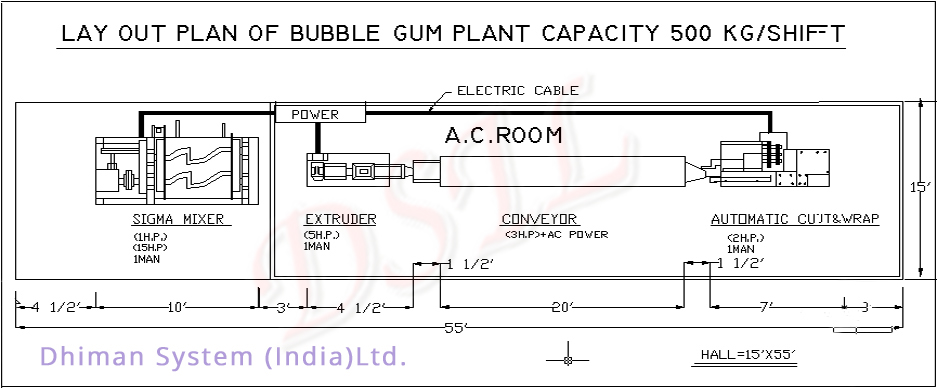

Bubble Gum Plant
INDIA+919814066007, +919872966007, dsilgroup@gmail.com
Sigma Mixer
Model DSMB0200
Capacity 200 Ltr.
Drum Size 760x760x760mm
Drive 15+1 HP
Dimensions 2200x1300x1475mm
Steam Pressure 60LBS/Sq. Inch
Weight Net 1000 Kg
  Groos 1500 Kg
Double Worm Extruder
Model DSEB6000
Capacity 6000 Kg./8Hrs*
Drive 15 HP
Dimensions 3000x1000x1600mm
Rope Type Hollow/Solid/Double
  Color any Shape
Weight Net. 900 Kg.
  Gross 1200 Kg
Seven Deck Cooling Conveyor
Model DSCB7200
Capacity Depending On Cooling &
  Wrapping Machine Capacity
Drive 1HP+Ac
Air Conditioner 20 Tons (Optonal)
Application Cooloing of Gum Rope
Dimensions 9030x1540x1850mm
Weight Nt. 1200 Kg.
  Gr. 1900 Kg.

Cut & Fold Wrap Machine
Model DSTF0300
Capacity 300Pcs/Minutes **
Drive 2HP
Min. Size 16x12x5 mm
Max. Size 50x25x10 mm
Dimensions 1565x860x1820 mm
Wrapping Style Fold Wrap
Attachment Double/Single Twit (Opt.)
Weight Net 1000Kg
  Gross 1500 Kg
